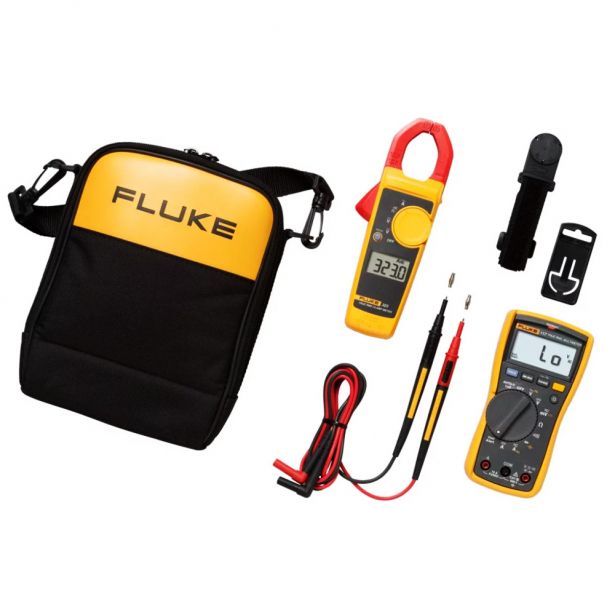

Fluke FLU117/323 Multimeter & Clamp Meter Combo Kit

Fluke FLU117/323 Multimeter & Clamp Meter Combo Kit

Features:

Having the right tool for the job is essential. Having all the right tools when you need them is even better. The Fluke 117/323 Electricians Multimeter Combo Kit gives you the best in a versatile, rugged multimeter and a fast-acting, general purpose clamp meter.

The Fluke 117 provides non-contact voltage detection, an AutoV/LoZ function, Min/Max/Average readings, plus frequency and capacitance measurements. It's easy to use and saves you time.

Electrical meters need to handle whatever comes up on the job. That's why the Fluke 117 Electrician's Multimeter is certified for use in CAT III 600 V environments.

True RMS measurements and optimized ergonomics make the Fluke 323 True RMS Clamp Meter the best general purpose clamp meter for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.

Together, the Fluke 117 Electricians Multimeter and 323 True-rms Clamp Meter give electricians the right tools for the job.

Fluke 117 Electrician's Multimeter

Fast go/no-go testing with VoltAlert™ non-contact voltage detection
AutoVolt automatic AC/DC voltage selection
Low input impedance helps prevent false readings due to ghost voltage
Work in poorly lit areas with the Large white LED backlit display
True RMS voltage and current for accurate measurements on non-linear loads
Measures 10 A directly (20 A overload for 30-seconds) without a current clamp
Resistance, continuity, frequency and capacitance
Record signal fluctuations using Min/Max/Average and elapsed time stamps
Easy to use with one hand
Hands free operation with optional magnetic hanger (ToolPak™)
CAT III 600 V safety rated

Specifications:

Maximum voltage between any terminal and earth ground: 600 V
Surge protection: 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display Digital: 6,000 counts, updates 4 per second
Bar graph: 33 segments, updates 32 per second
Operating temperature: -10 °C to +50 °C
Storage temperature: -40 °C to +60 °C
Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery life: 400 hours typical, without backlight

Accuracy Specifications:

DC millivolts:
Range/Resolution: 600.0 mV / 0.1 mV
Accuracy: ±([% of reading] + [counts]): 0.5% + 2
DC volts:
Range/Resolution:
6.000 V / 0.001 V
60.00 V / 0.01 V
600.00 V / 0.1 V
Accuracy: ±([% of reading] + [counts]): 0.5% + 2
Auto volts:
Range/Resolution: 600.0 V / 0.1 V
Accuracy:
2.0% + 3 (DC, 45 Hz to 500 Hz)
4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS:
Range/Resolution: 600.0 mV / 0.1 mV
Accuracy:
1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS:
Range/Resolution:
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V
Accuracy:
1.0% + 3 (DC, 45 Hz to 500 Hz)
2.0% + 3 (500 Hz to 1 kHz)
Continuity:
Range/Resolution: 600 Ω / 1 Ω
Accuracy: Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 μs or longer.
Ohms:
Range/Resolution:
600.0 Ω / 0.1 Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
Accuracy: 0.9% + 1
Range/Resolution: 40.00 MΩ / 0.01 MΩ
Accuracy: 5% + 2
Diode test:
Range/Resolution: 2.00 V / 0.001 V
Accuracy: 0.9% + 2
Capacitance:
Range/Resolution:
1000 nF / 1 nF
10.00 μF / 0.01 μF
100.0 μF / 0.1 μF
9999 μF / 1 μF
100 μF to 1000 μF
Accuracy: 1.9% + 2
Range/Resolution: > 1000 μF
Accuracy: 5% + 20%
Lo-Z capacitance:
Range: 1 nF to 500 μF
Accuracy: 10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz):
Range/Resolution:
6.000 A / 0.1 A
10.00 A / 0.01 A
Accuracy: 1.5% + 3
20 A continuous overload for 30 seconds max
DC amps:
Range/Resolution: 6.000 A / 0.1 A10.00 A / 0.01 A
Accuracy:
1.0% + 3
20 A continuous overload for 30 seconds max
Hz (V or A input)²:
Range/Resolution:
99.99 Hz / 0.01 Hz
999.99 Hz / 0.1 Hz
9.999 Hz / 0.001 Hz
50.00 Hz / 0.01 Hz
Accuracy: 0.1% + 2

1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V.

2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe.

Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current.
Temperature Range/Resolution: -40 °F to 752 °F / 0.2 °F.

Fluke 323 True-rms Clamp Meter

400 A AC current measurement
600 VAC and DC voltage measurement
True RMS AC voltage and current for accurate measurements on non-linear signals
Resistance measurement up to 40 kΩ with continuity detection

Specifications:

AC current:
Range 400.0 A
Accuracy:
2% ±5 digits
(45 Hz to 65 Hz)
2.5% ±5 digits
(65 Hz to 400 Hz)
AC voltage:
Range: 600.0 V
Accuracy: 1.5% ±5 digits
DC voltage:
Range: 600.0 V
Accuracy: 1.0% ±5 digits
Resistance:
Range/Resolution: 400.0 Ω/ 4000 Ω
Accuracy: 1.0% ±5 digits
Continuity: ≤ 70 Ω
AC response: True RMS
Data hold: Yes
Max wire diameter: 30 mm (600 MCM)
Category rating:
CAT III 600 V
CAT IV 300 V
