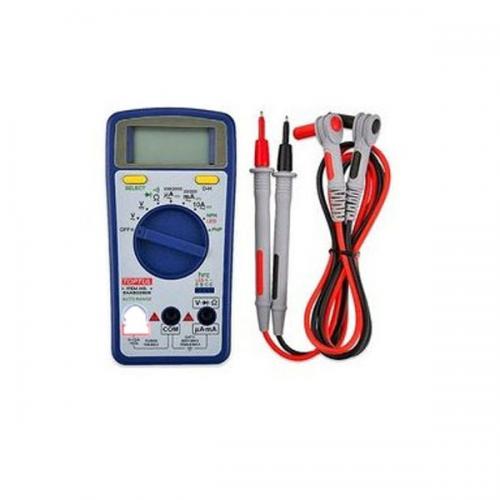

Toptul EAAB0260E Digital Multimeter AC/DC 600V 10A
Features:
Digital multimeter with basic measuring functions
Test lead set with test tip (red/black)
Central dial switch
Large LCD with 3-1/2 digit display 2000 counts
Low battery indicator and auto shut off (after 15 minutes)
Additional Features: Data hold, auto range, auto power off selection, auto power off cancelation
AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Diode test
Continuity test with buzzer
Transistor test (NPN & PNP)
LED test
Specifications:
AC Voltage 2V / 20V / 200V / 600V
DC Voltage 200mV / 2V / 20V / 200V / 600V
Resistance 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ
AC / DC Current 200μA / 2000µA / 20mA / 200mA / 2A / 10A
Diode 1V
Continuity Check 200Ω
Transistor (NPN/PNP) 2000 hFE
LED Test Yes
Operating Environment 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Power Supply Battery 1.5V AAA x 2 pcs (included)
Fuse Protection 0.5A / 600V Ø5xL20mm, 10A / 600V Ø6.35xL32mm
Testing Standard IEC 61010-1 / IEC 61010-2-030 / IEC 61010-2-033
Measurement Category CAT II 600V / CAT III 300V
Pollution Degree 2
Dimension 138mm (L) x 70mm (W) x 32mm (H)
Weight Approx. 140g
