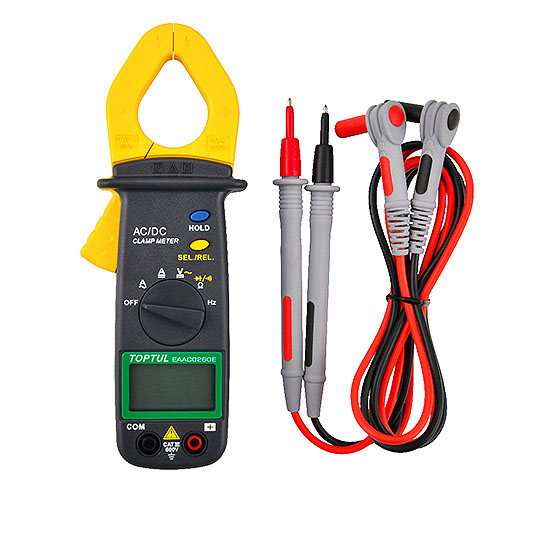

Toptul EAAC0260E Digital Clamp Meter
Features:
Digital clamp meter with basic measuring functions
Test lead set with test tip (red/black)
Central dial switch
Large LCD with 3-3/4 digit display 4000 counts
Max. diameter for clamp jaw: Ø30mm
Low battery indicator and auto shut off (after 30 minutes)
Additional Features: Data hold, auto range, auto power off selection
Function:
AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Diode test
Continuity test with buzzer
Frequency measurement
Specifications:
AC Voltage 4V / 40V / 400V / 600V
DC Voltage 400mV / 4V / 40V / 400V / 600V
Resistance 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
AC Current 400A / 600A
DC Current 400A / 600A
Diode 1V
Continuity Check 400Ω
Hz Frequency 5Hz / 50Hz / 500Hz / 5kHz / 50kHz /100kHz
Operating Environment 0 ~ 50°C (32 ~ 122°F) at < 80% R.H. (non-condensing)
Storage Environment -10 ~ 60°C (14 ~ 140°F) at < 70% R.H. (non-condensing)
Operating Altitude Altitude up to 2000m
Power Supply Battery 1.5V AAA x 2 pcs (included)
Testing Standard IEC 61010-1 / IEC 61010-2-032 / IEC 61010-2-033
Measurement Category CAT Ⅲ 600V
Pollution Degree 2
Dimension 190mm (L) x 71mm (W) x 37mm (H)
Weight Approx. 200g
