TUF MCL4V3H Laser Multi 2 Beam Line Laser 50m with Detector
Features:
Linear laser levelling, self levelling, generating three horizontal lines, four lines of vertical and plummet.
Horizontal lines can create a horizontal circuit
Easy to use, designed for outdoor and indoor use
Cost effective internal laser option
2 vertical beams 90° to each other
Auto self levelling
Applications:
Carpentry: level and set cabinets and countertops, level, square and plumb decks; Plumb framing and partition walls, kitchen Installation
Concrete: set forms and footings; square foundations.
Electrical: level electrical outlets; Transfer lighting layout from floor to ceiling
Flooring: layout tile
Ceiling Installation
Specifications:
Accuracy (vertical and horizontal) ± 1mm/5m
Accuracy Plummet (lower) ± 1mm/1.4m
Self levelling Accuracy ± 2.5°
Laser 635nm 7 x (horizontal, vertical), 1 x 650nm (plummet)
Working Range 10m or 50m with detector
Emitted Angle 110°
Operating Temperature -10°C - +45°C
Power supply 3V (2 x AA batteries)
Option to switch from external to internal work (and vice versa)
Running Time 6 hours
Rugged Construction Dust, dirt and water resistant
Thread size 5/8”

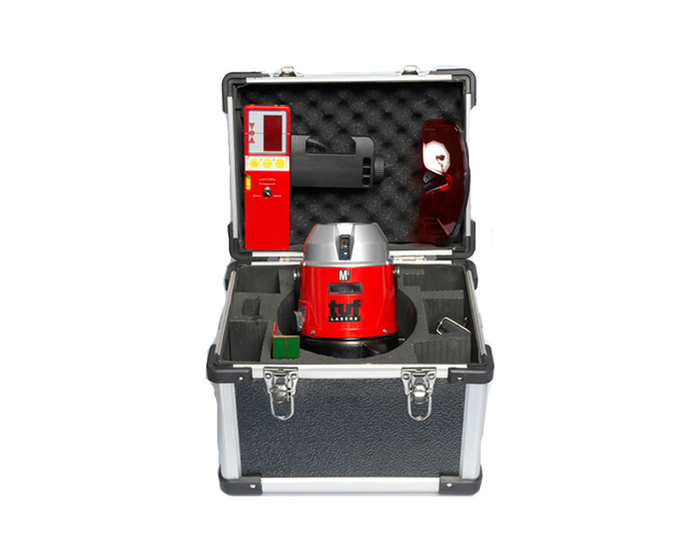

Includes:
Laser
Laser target
Detector & bracket
User guide
Solid aluminium case
Mounting strap
Three (3) “AA” batteries
Laser glasses
